To administrate our controllers JDA48-1-/1-4 we have developed a special configuration software. The software allows administration and documention of complex system structures. Below some screenshots of the software and resulting documention are represented . The software is running under WIN-XP or WIN7.

The project based software allows planning projects in advance. The different parameters of the controller dependent modules are programmable in the running system.

Product JD-MBKONF01E  BETA V1.0 UK  available March 2013

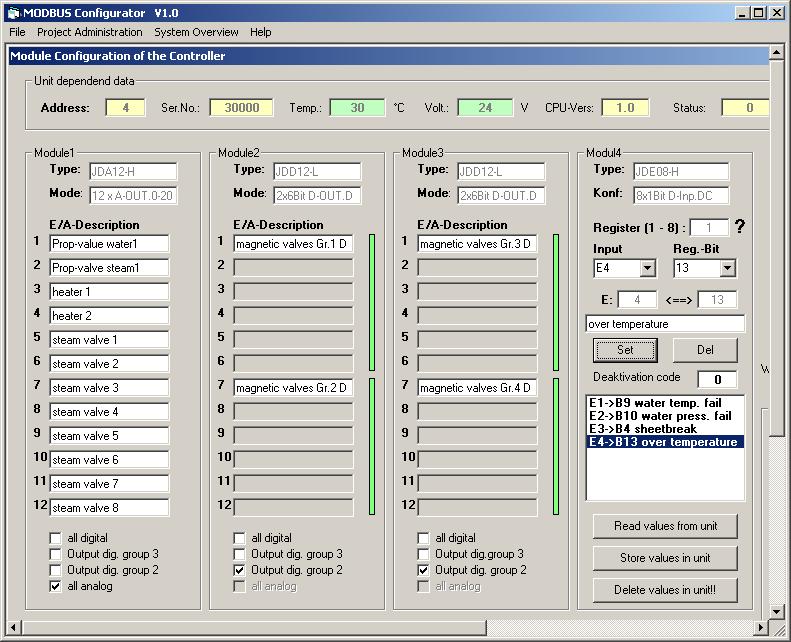

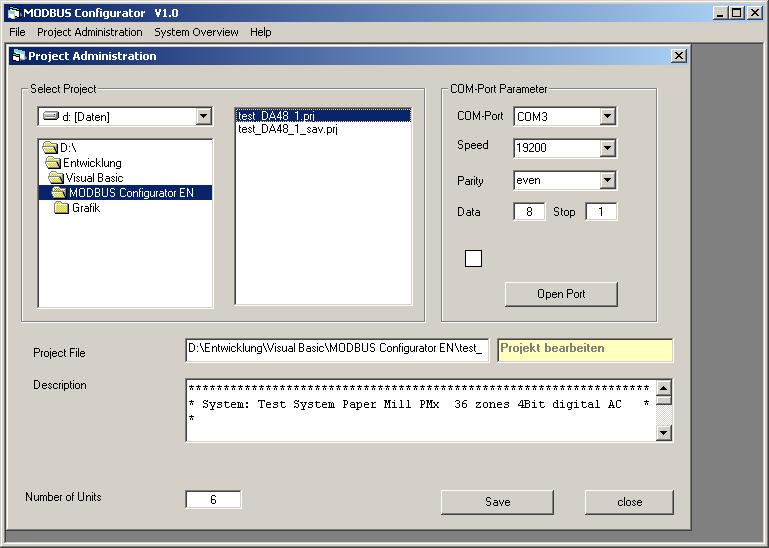

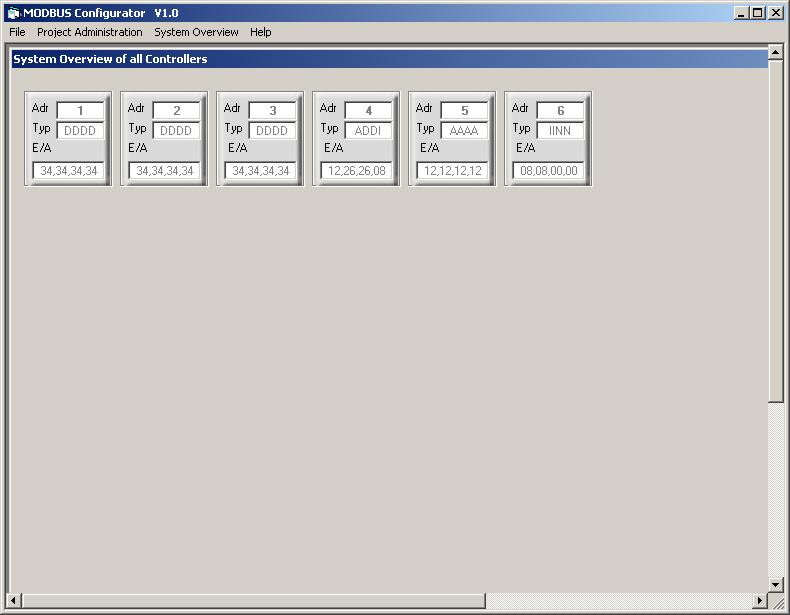

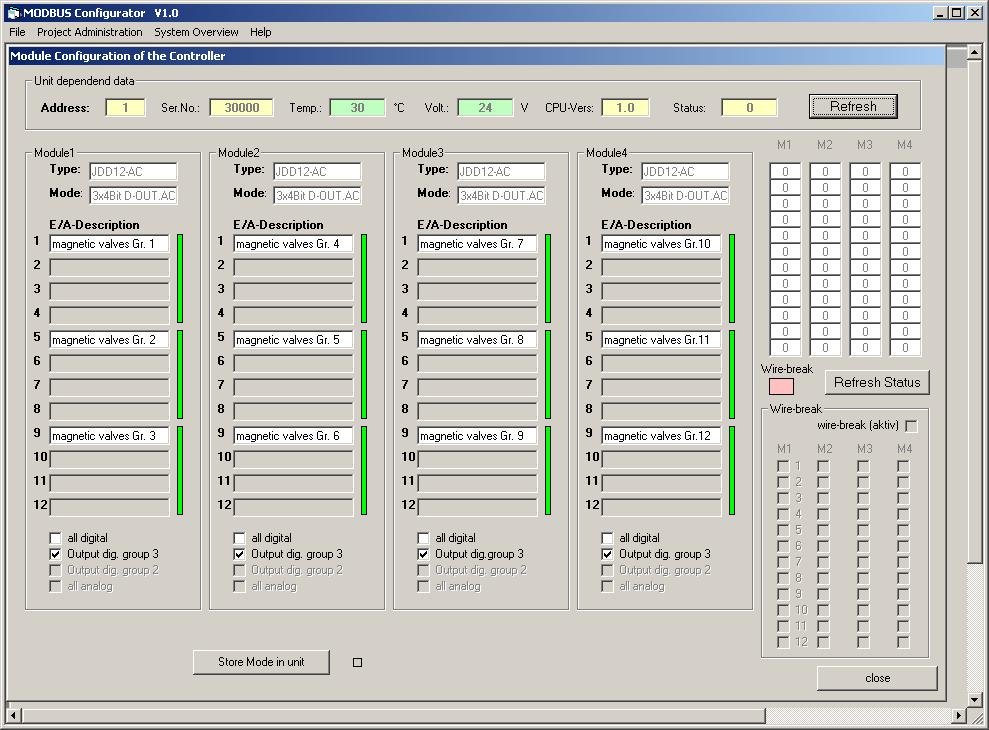

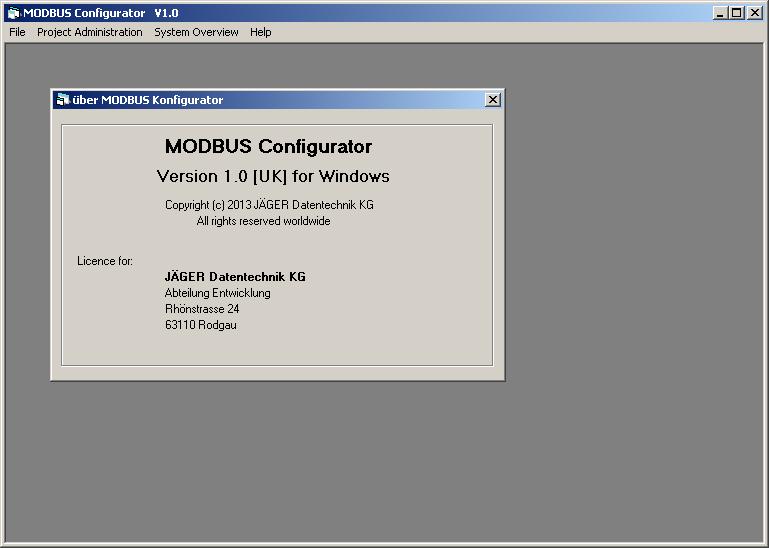

Screen Start Load project   System overview   Controller 1   Controller 4   Documentation
Link picture picture picture picture picture


Further documentation in preparation.
